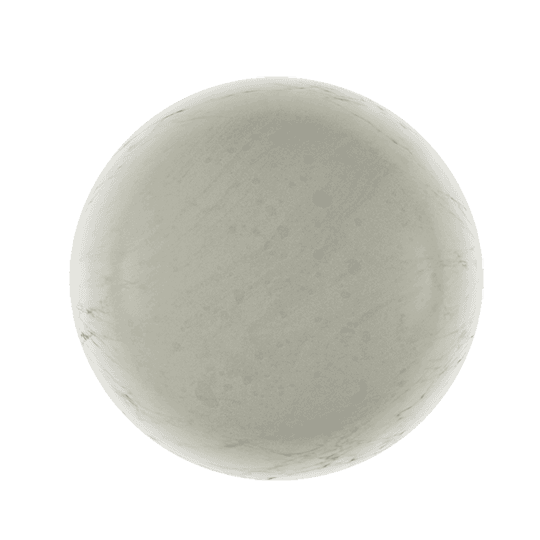

1.0 SG ZeroIn-MT TM
Dissolvable Ball Sealer - Medium Temperature
Optimize Fluid Diversion and Enhance Stimulations
The near-buoyant ZeroIn-MT lightweight dissolvable ball sealer will temporarily seal perforations designed to seat on the center of the casing in horizonal/deviated wells. Vertical wells will provide the best ball action in lower rate stimulations.
Applications
• Plug open perforations for cleaning scale and paraffin
• Improve stimulation by diverting fluid to lower-permeability zones
• Help manage fluid in hydraulic fracturing stages and refracs
Features
• Compatible with standard stimulation fluid additives
• Dissolves in freshwater, brine, and acid
• Differential pressure tested with fluid up to 4000 psi [27.6 Mpa] and 200 °F [93 °C]
Benefits
• Maximizes perforation sealing in horizontal wells by matching the ball sealers to the specific gravity of the fluid
• Greater ball transport efficiency in horizontal laterals verse the traditional heavier (1.2 to 1.4 SG) ball sealers
• Quickly dissolves in hours after stimulation or fracturing stages
• Completely biodegradable material
Properties
Temperature Range
75 – 200 ºF [24 – 93 ºC]
Appearance
White
Specific Gravity
1.0 +/- 0.05
Solubility
Compatible with freshwater, brine, and acid; incompatible with nonpolar solvents, such as diesel, benzene, xylene, kerosene, toluene
pH Fluids
0-12
Storage
Keep product away from moisture; do not expose to temperature higher than 130 ºF [54 ºC]
Size
0.50 in [13 mm]; 0.625 in [16 mm]; 0.875 in [22 mm]; 1.0 in [25 mm]; 1.25 in [32 mm]
